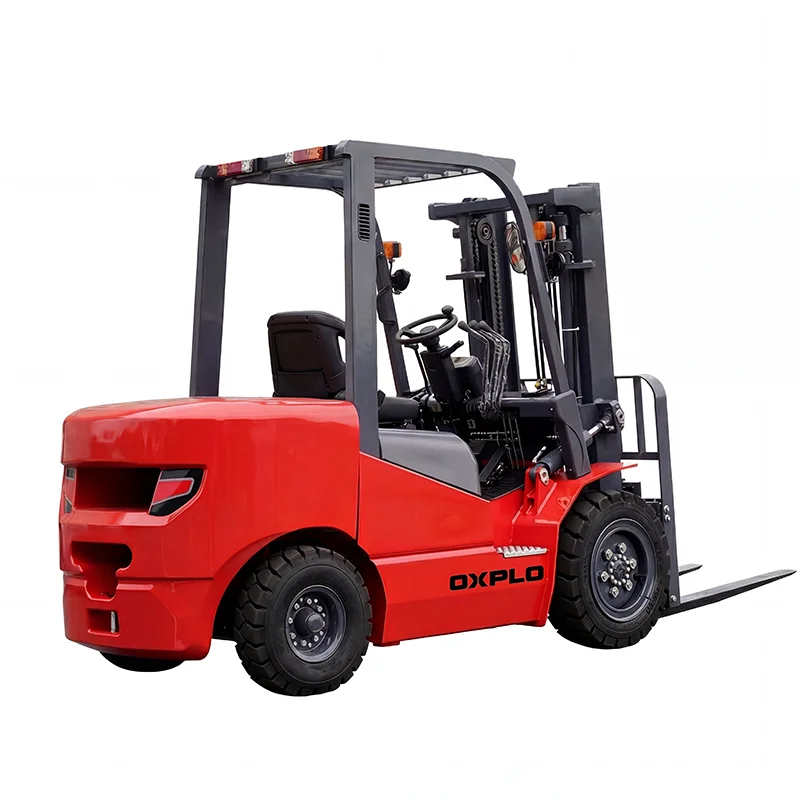

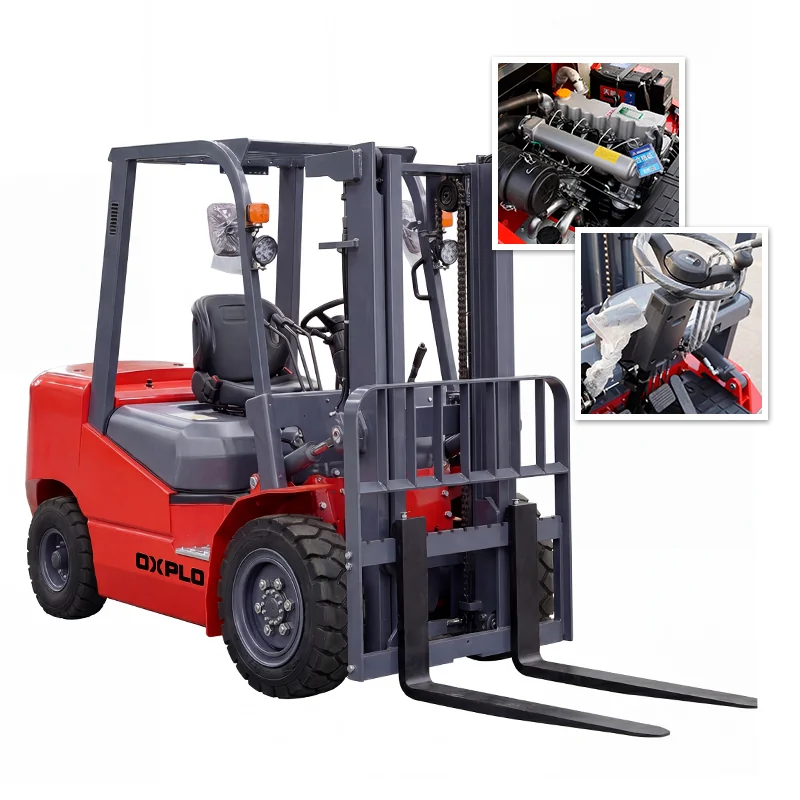

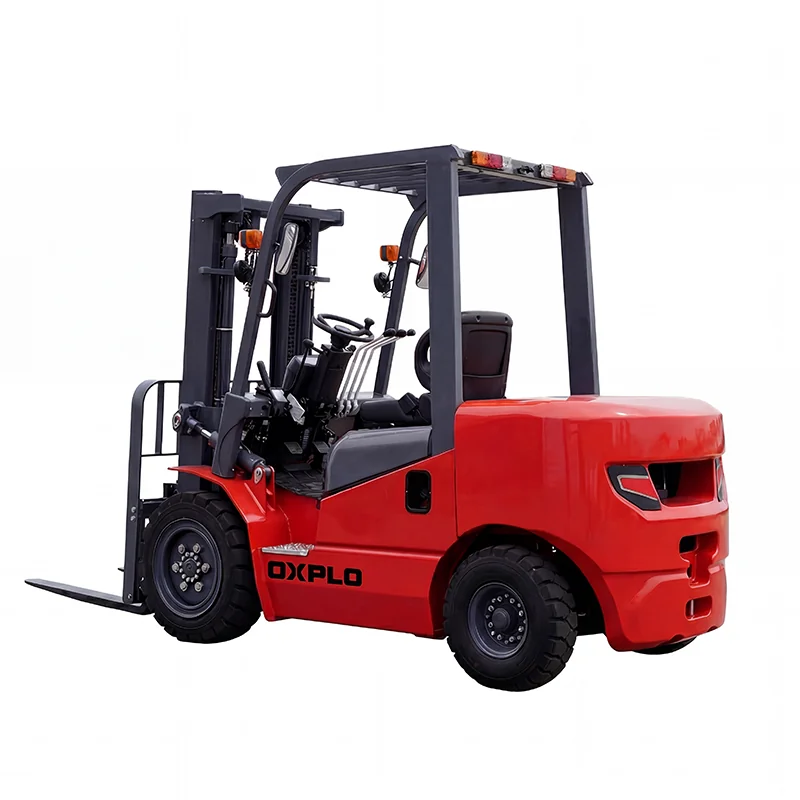

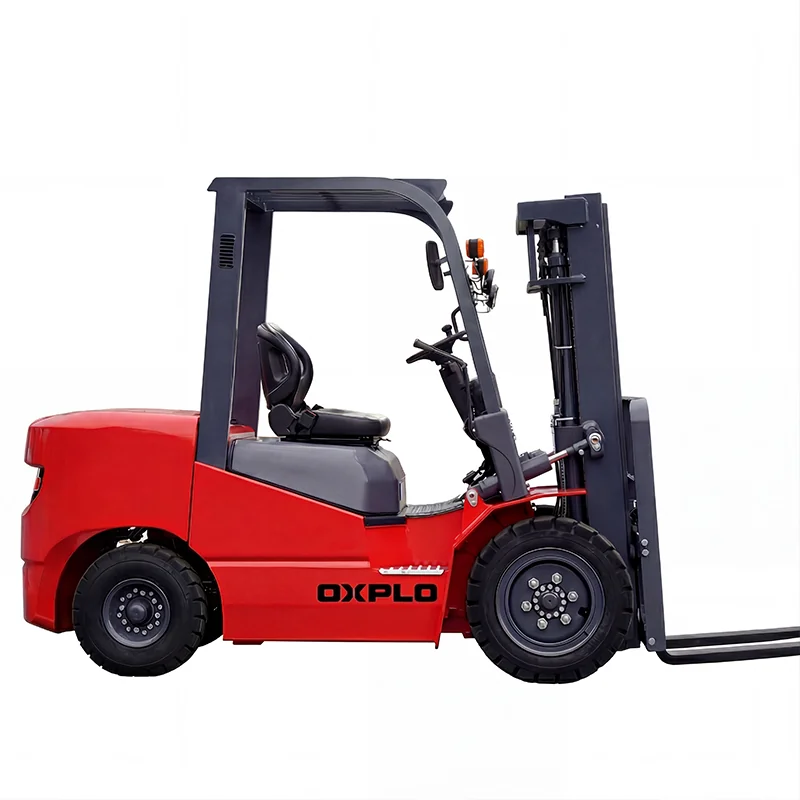

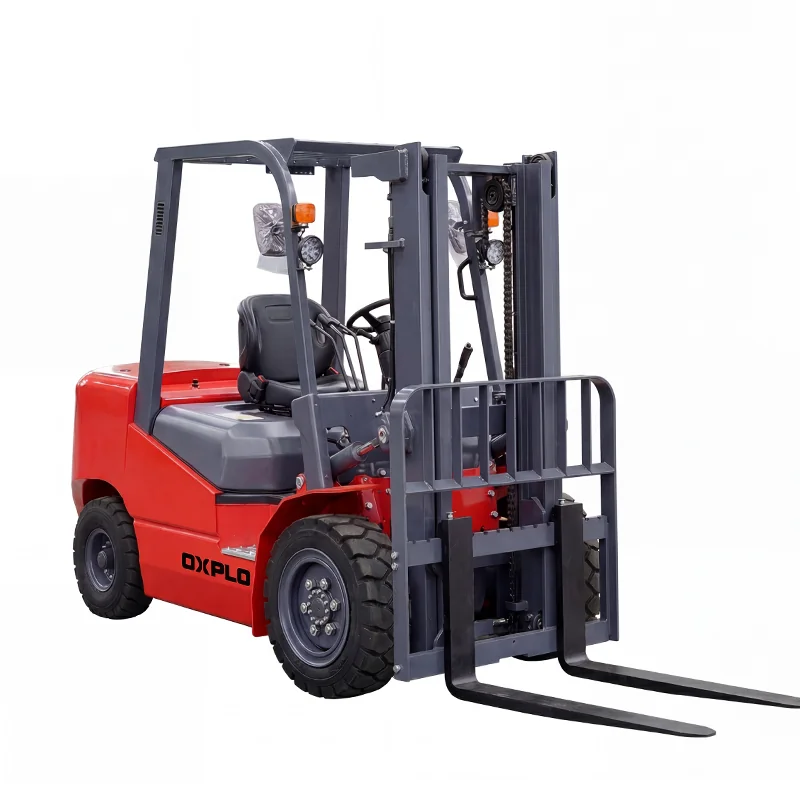

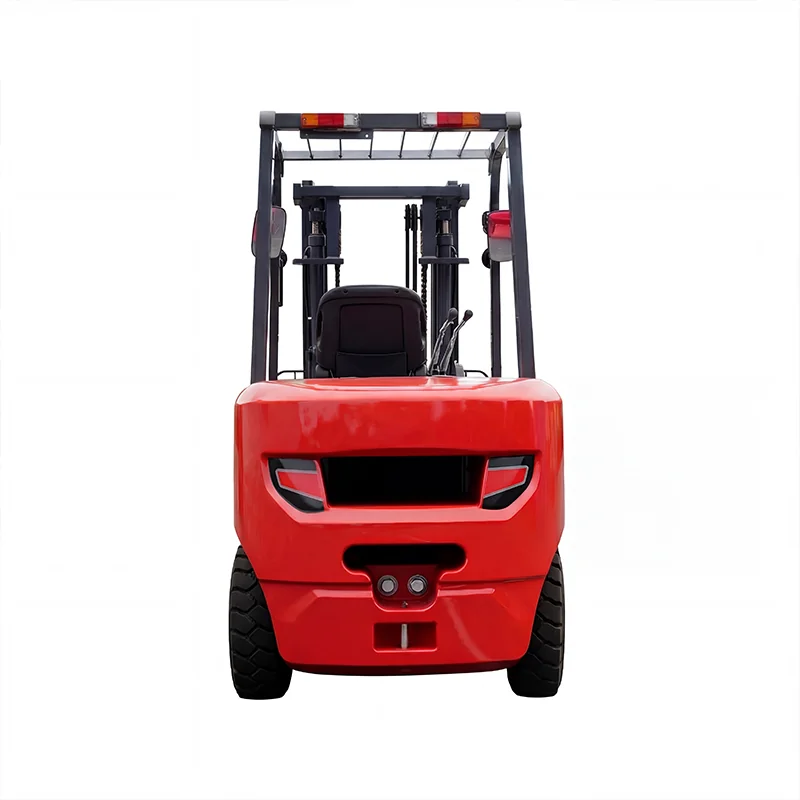

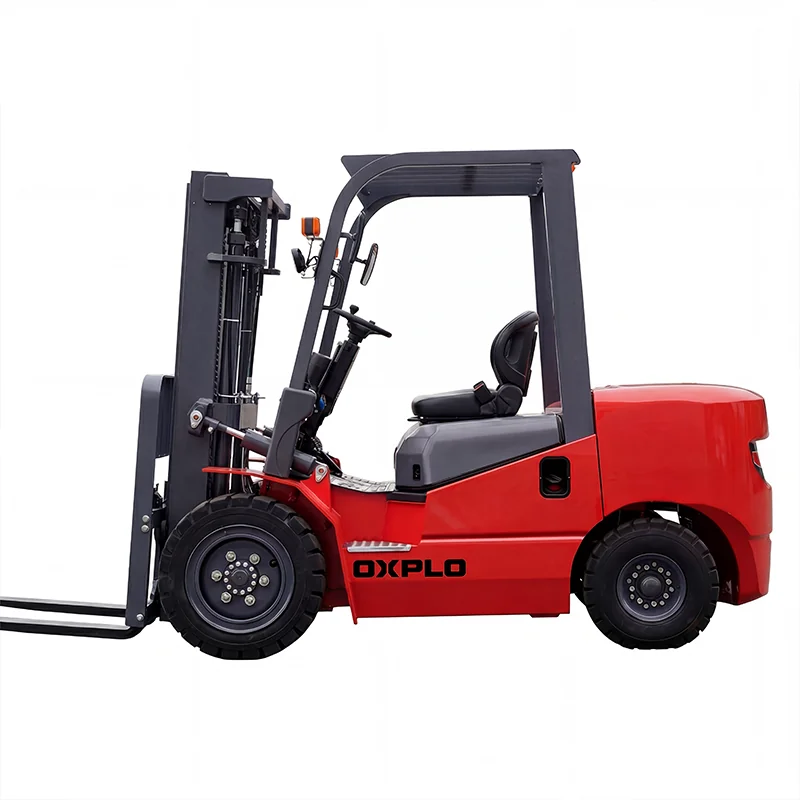

OXPLO OXCPCDH35 DIESEL FORKLIFT
UNYIELDING POWER. PRECISION HANDLING. MAXIMUM UPTIME.
The OXPLO OXCPCDH35 (Model CPC/CPCD35) is not just a forklift; it is the industrial-strength backbone your material handling fleet demands. Engineered for continuous, heavy-duty operations, this 3,500kg powerhouse combines robust diesel technology with precise hydraulic control to keep your warehouse, yard, or construction site moving at peak efficiency.
The OXPLO Edge: We don’t just lift loads; we lift your productivity by minimizing downtime and maximizing fuel efficiency.
DETAILS
| Category | Parameter Item | Data / Specification (CPC/CPCD35) |
| Capacity | Rated Lifting Load | 3,500 kg (3.5 Tons) |
| Load Center Distance | 500 mm | |
| Dimensions | Overall Length (With Fork) | 3,975mm |
| Overall Length (Without Fork) | 2,755mm | |
| Overall Width | 1,225 mm | |
| Overhead Guard Height | 2,150mm | |
| Wheelbase | 1,760 mm | |
| Min. Ground Clearance (Mast) | 130 mm | |
| Mast & Fork | Free Lifting Height | 145mm |
| Mast Tilt Angle (Front/Rear) | 6° / 12° | |
| Fork Size (LWT) | 1,220 × 125 × 45 mm | |
| Performance | Max. Travel Speed (Full/No-load) | 18/ 19.5 km/h |
| Max. Lifting Speed (Full/No-load) | 380 / 450 mm/s | |
| Max. Gradeability (Full/No-load) | 15% / 18% | |
| Maneuverability | Min. Turning Radius (Outer) | 2,515 mm |
| Min. Right Angle Aisle Width | 2,545 mm | |
| Tires & Weight | Tire Size (Front / Rear) | 28×9-15/ 650-10 |
| Total Forklift Weight | 4,650 kg | |
| Engine | Engine Model | XINCHAI C490 BPG |
ADVANTAGES
🛡️ CORE PERFORMANCE FEATURES
Powered by Industrial Durability: The XINCHAI C490 BPG Engine
The heart of the OXCPCDH35 is the legendary XINCHAI C490 BPG engine. Renowned for its cold resistance, high torque, and straightforward maintenance, this engine ensures your operation never stalls, even under intense work cycles.
-
Fuel Efficiency: Optimized combustion parameters reduce fuel consumption and emissions.
-
Cold Resistance: Rugged engineering for stable operation in sub-zero environments.
Rapid Cycle Times, Remarkable Speed
Time is inventory. The OXCPCDH35 is engineered for speed, delivering industry-competitive travel and lift speeds to minimize truck wait times.
-
Fast Travel: Reaches up to 18km/h (no-load) and 19.5 km/h (full-load) for quick site navigation.
-
Rapid Lifting: A robust hydraulic pump provides lift speeds up to 450 mm/s, accelerating your throughput.
Designed for Confined Space Navigation
Heavy-duty lifting doesn’t have to mean cumbersome maneuvering. The OXCPCD35 features a compact turning radius, making it an ideal choice for narrow-aisle warehouses and packed construction zones.
-
Turning Radius: A tight 2,515 mm outer turning radius.
-
Right-Angle Aisle Compatibility: Works efficiently in aisles as narrow as 2,545 mm.
💡 OPERATOR-CENTRIC COMFORT & SAFETY
All-Weather Operator Comfort
A comfortable operator is a productive operator. The OXPLO standard-fitted cabin is optimized for ergonomic operation and climate control options.
-
Ergonomic Seating: Optional protective wraps ensure longevity against elements.
-
Excellent Visibility: A standard 360° unobstructed view for safe navigation.
-
Intelligent Monitoring: A digital dashboard provides real-time diagnostics and engine health data.
Ramps Are Not An Obstacle
With a powerful powertrain and optimized chassis, the OXCPCD35 tackles ramps and uneven terrain effortlessly.
-
15-18% Gradeability (Full-Load): Seamlessly navigates slopes, connecting multi-level warehouse operations or outdoor yards.
🔧 SERVICEABILITY & RELIABILITY
Minimal Maintenance, Maximum Uptime
We engineered the OXCPCD35 for fast servicing:
-
Wide-Opening Hood: Instant ground-level access to the XINCHAI engine, all filters, and daily fluid checkpoints.
-
Durable Tires: Rugged 28×9-15 and 650-10 pneumatic tires built for diverse terrains.
