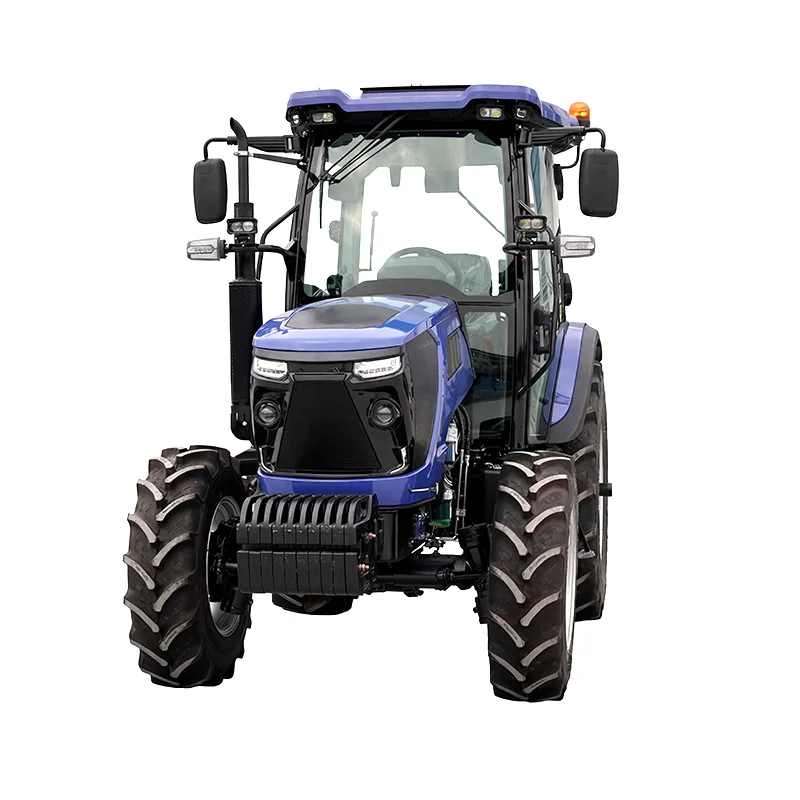

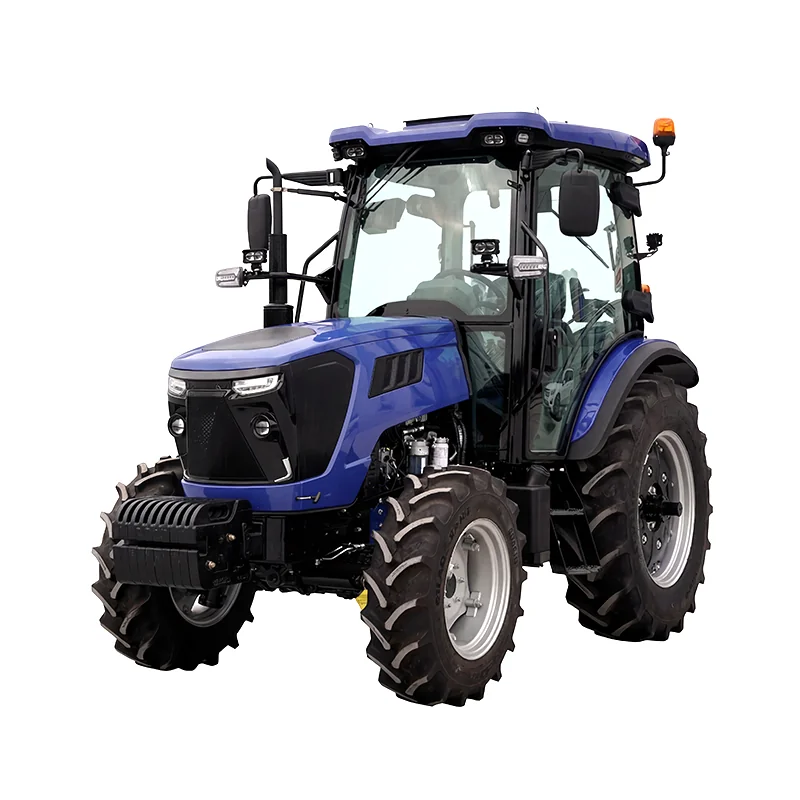

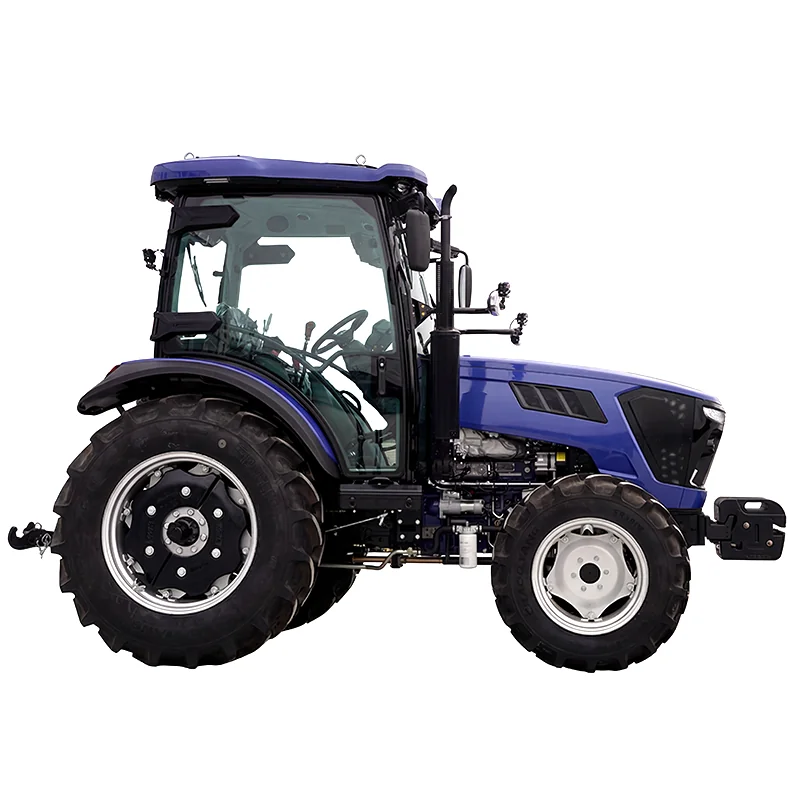

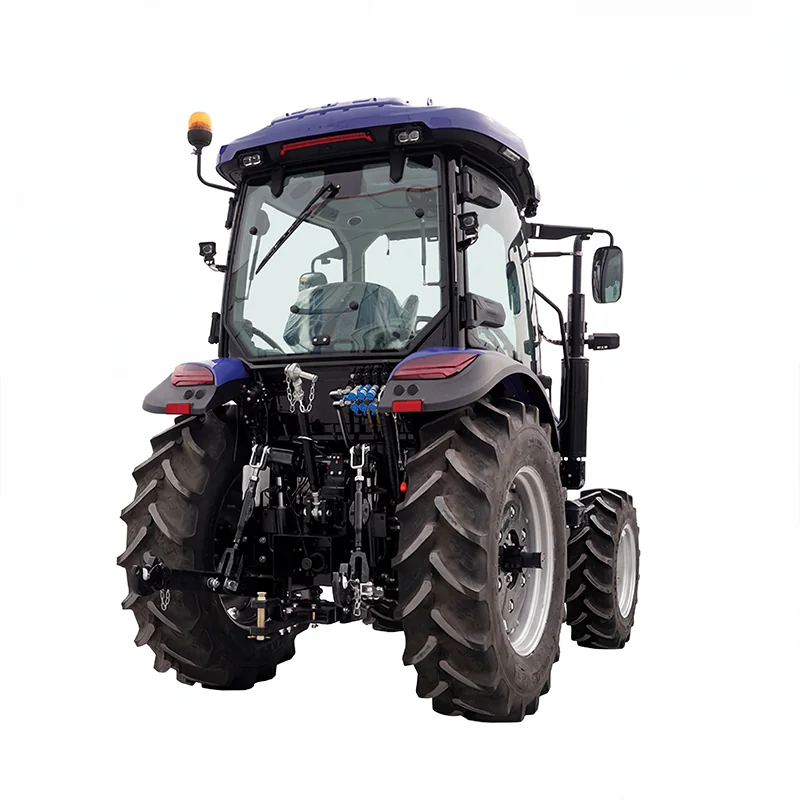

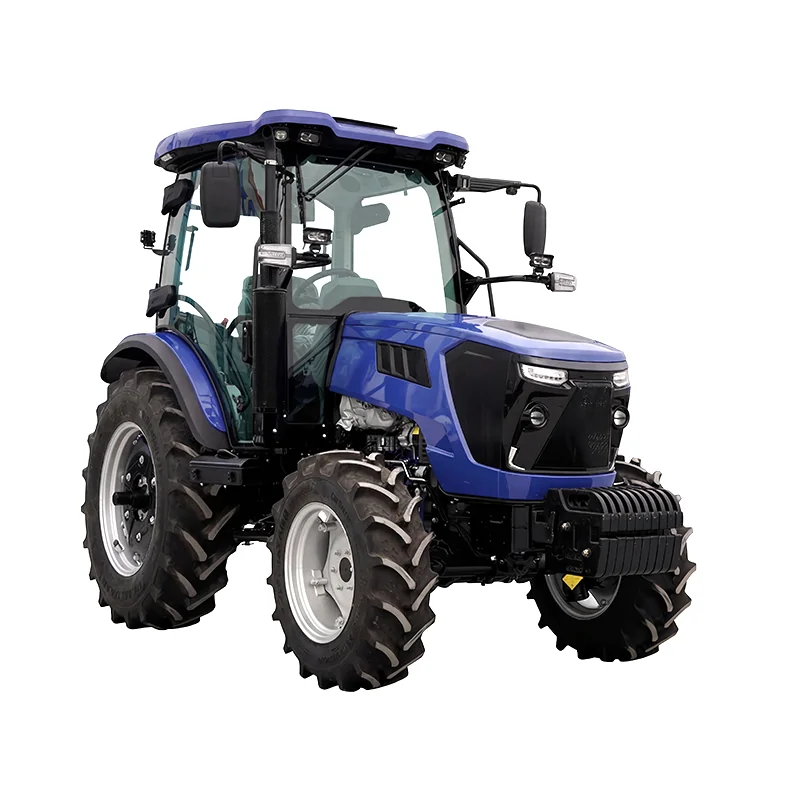

OXTB504 | The Professional Standard in Compact 4WD Tractors
Precision Engineering. Elite Power. Uncompromising Safety.
The OXTB704 is a masterclass in compact agricultural engineering. By combining a high-precision CNC-machined chassis with a globally recognized power plant, this tractor delivers industrial-grade performance in a versatile, mid-sized frame. Whether you are managing high-value orchards or demanding commercial landscapes, the OXTB704 provides the stability, safety, and multi-functional capability required for modern agriculture.
DETAILS
Engine Power
Engine Power
Engine Power70HP 4WD 2950kg
| TECHNICAL SPECIFICATIONS – OX-TB704 | ||
|---|---|---|
| Model | OX-704 | |
| Number of Cylinders | 4-Cylinder, Water-Cooled | |
| Dimensions (L × W × H) | mm | 3540 * 1920 * 2800 |
| Wheelbase | mm | 2090 |
| Wheel Track (Track Width) | mm | 1300 / 1350 / 1400 / 1450 / 1500 1300 – 1500 |
| Min. Ground Clearance | mm | 380 |
| Rated Power / Horsepower | kW/HP | 55.1 / 70 |
| Rated Speed | rpm | 2200 |
| Total Weight | kg | 2950 |
| Transmission (Gearbox) | 12+12 | |
| Tyre Model (Front/Rear) | 8.3-20 12.4-28 |
|
| Suspension Model | Category: II | |
| PTO Speed | rpm | 540 / 1000 540 / 720 |
| Splines | 6-φ35 Rectangular Spline | |
| Braking System | Drum Brake | |
Core Engineering Pillars
💎 Precision Chassis & Stability
Built on a Precision Chassis, the OXTB704 features a streamlined design crafted through high-precision CNC machining. This advanced manufacturing process ensures a perfect center of gravity and a 2500kg construction mass, providing the ideal balance between maximum traction and rock-solid stability during heavy-lift operations.
🚀 Elite Power & Reliability
At the heart of the OXTB704 is our Elite Power system. Equipped with engines from leading global brands, our tractors are engineered for superior reliability and an extended service life. This world-class powertrain ensures consistent torque output while offering simplified maintenance intervals to keep your uptime at 100%.
🛡️ Safety & Ergonomic Command Center
Operator well-being is at the forefront of our design. The cabin features a reinforced ROPS (Roll-Over Protective Structure) for maximum safety. Inside, the Ergonomic Layout puts all controls within natural reach, paired with a premium suspension seat to reduce fatigue during long working hours.
🔄 Maximum Versatility
The OXTB704 is a multi-tasking powerhouse. With its Category I suspension and an optional heavy-duty front loader arm, this machine is compatible with a vast array of implements. From tilling and seeding to loading and hauling, a single OXTB704 efficiently performs the work of several specialized machines.
🔧 Technical Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| Engine Output | 51.5 kW / 70 HP @ 2400 rpm |
| Drive Configuration | 4WD (All-Wheel Drive) |
| Transmission System | 12 Forward + 12 Reverse (Shuttle Shift) |
| Chassis Build | CNC Machined / 2950kg Construction Mass |
| Hydraulics & Hitch | Category II Three-Point Suspension |
| PTO Output | Dual Speed 540/1000 rpm (6-Spline) |
| Ground Clearance | 380 mm (High-Passage Design) |
| Tire Package | Front 8.3-20 / Rear 12.4-28 (Optional Tires) |
FAQ
OXPLO Official FAQ: Expert Solutions & Global Support
Q: What are the most common loader types for industrial and agricultural applications?
A: In the modern manufacturing and farming industries, the most versatile choices are Compact Wheel Loaders and Backhoe Loaders. Each OXPLO model is precision-engineered for specific high-efficiency material handling. Whether you are navigating tight warehouse spaces or tackling heavy field excavation, OXPLO provides professional consultation to help you select the ideal machine for your unique operational scenario.
Q: How can I verify the credibility of OXPLO as my machinery partner?
A: We believe in absolute transparency. Verifying a premium Chinese supplier involves reviewing international certifications (ISO/CE), inspecting manufacturing scale, and evaluating global customer feedback. OXPLO maintains a state-of-the-art production facility, and we cordially invite our global partners to visit and inspect our factory in person. We also provide detailed product documentation and live video demonstrations to ensure total reliability before you purchase.
Q: What are the core advantages of choosing OXPLO machinery?
A: OXPLO stands at the intersection of innovation and value. We offer 100+ independently developed models with extensive customization options to meet specific regional requirements. Our key advantages include:
Factory-Direct Pricing: Competitive edge without compromising on build quality.
Engineering Excellence: Focused on low fuel consumption and simple, intuitive operation.
On-Time Delivery: Streamlined logistics to ensure your fleet is ready when you are.
Q: How does OXPLO guarantee global after-sales service and parts support?
A: We understand that uptime is everything. OXPLO has established a robust global service network with dedicated warehouses and authorized distributors in Australia, Brazil, Southeast Asia, and beyond. This strategic infrastructure ensures the fastest possible delivery of genuine components and technical support, keeping your machinery in peak condition wherever you are in the world.
